Wire Mesh Welding Machine

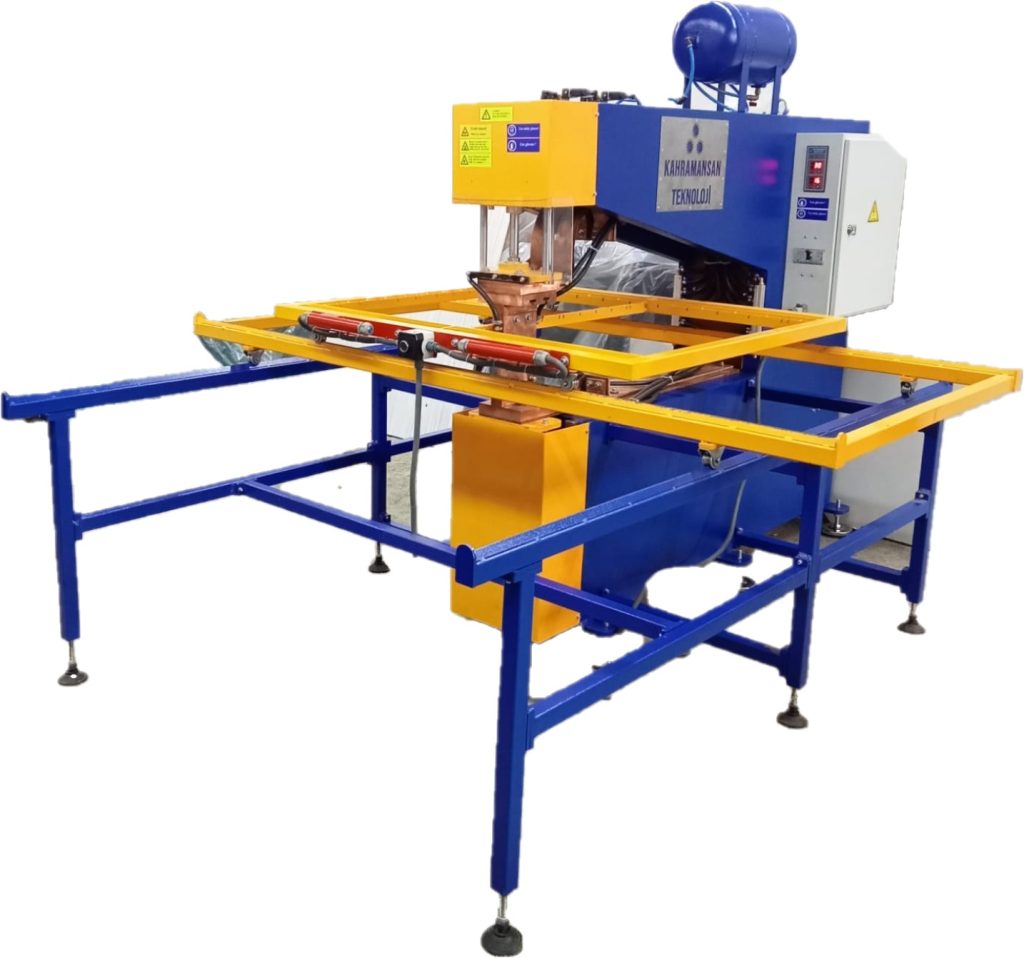

Wire Mesh Welding Machine with Manual Movable Table
KHP120 M Semi‑Automated Resistance Mesh Welding Machine with hand‑guided sliding table is designed for custom thick‑diameter wire mesh guards and irregular grids. Widely used in wire fence production, shopping cart manufacturing, and the construction industry, it delivers durable welding performance. Certified with CE, our products are globally available across Türkiye, Europe, America, Africa, Asia, and Australia. The manufacturer offers easy maintenance and full spare parts support, with after‑sales service provided, ensuring long‑term reliability and customer satisfaction.
Technical Specifications
Model: KHP120 M
Power: 120KVA (%50 DC)
Operated: Pneumatic
Pressure Input: Up to 6 bar
Maximum Force(6 bar): 115daN
Arm Length: 1000mm
Welding Capacity: Up to 4+4mm wires(4 wires same time)
Cooling: Water cooling (12L/min)
Input Voltage: 380V (50Hz)
Protection Fuse: 200A
Power Level: %1-99 power adjustable by micro-controller
Weld Time: 1-99 Cycle adjustable by micro-controller
Power Input Cable: 2m
Dimensions(W/L/H): 2100mmX2400mmX2200mm
Weight : 974 KG

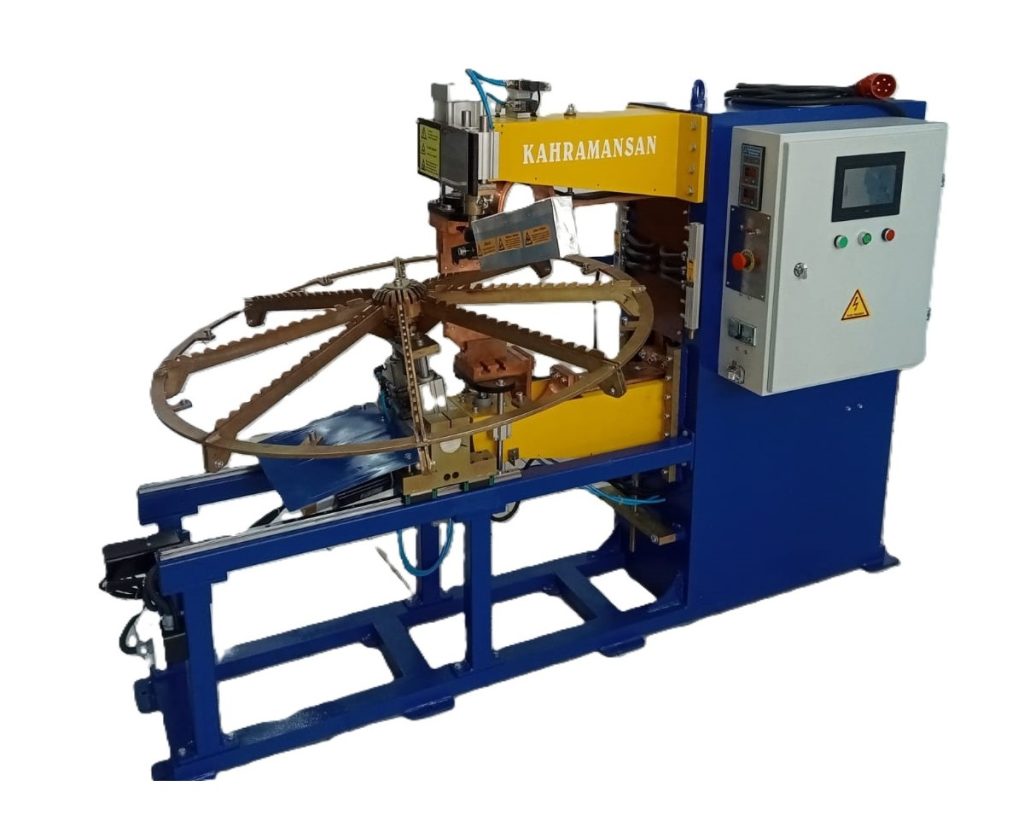

Fan Guard Spot Welding Machine
Industrial Fan Guard Welding Solutions
Fan Guard Resistance Welding Technology delivers strong wire joints at high speeds with rigid steel frames, digital controllers, water‑cooling systems, and pneumatic drive units. Heavy‑duty construction ensures precise alignment, while advanced controllers and cooling protect electrodes during continuous operations. Integrated radial wire auto‑welders fuse cross‑wires from hub to frame, enabling efficient and durable fan guard production. The manufacturer offers easy maintenance and full spare parts support, with after‑sales service provided, ensuring long‑term reliability and customer satisfaction. #kahramansanteknoloji
Technical Specifications
Operated: Pneumatic (Up and Down Piston)
Pressure: Up to 8 bar
Power: 60KVA
Welding Capacity: 5mm + 5mm thick 4 wires same time
Maximum Force: 610 daN
Input Voltage: 380V/50Hz
PLC Control System: Fatek
Motion: 2 Step Motors
Protection Fuse: 160A
Power Level: %1-100 power adjustable by digital microcontroller
Weld Time: 1-100 Cycle (20ms – 2s) adjustable by digital microcontroller
Arm Length: 800mm
Cooling: Water cooling (15L/min)
Power Input Cable: 3m
Protection Class: IP21
Dimensions (W/L/H): 1150mm x 2140mm x 1400mm
Weight: 526Kg

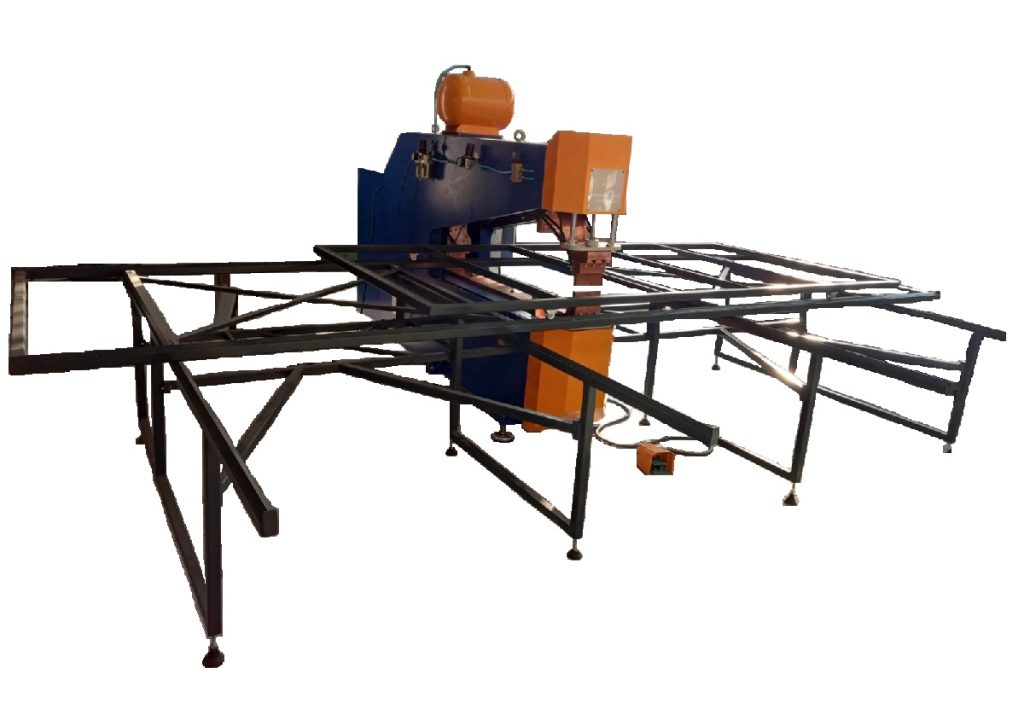

Mesh Welding Machine
XY‑Axis Adjustable Mesh Welding System
Movable Table Mesh Welding KMP180 uses ball bearings for smooth manual positioning of wire mesh under the welding electrode, making it suitable for custom panels, small batches, and complicated grids. Its digital control unit regulates squeeze, weld, hold, and off intervals to ensure consistent weld quality.
Technical Specifications
Model: KMP180
Operated: Pneumatic
Pressure: 4-8 bar
Power: 180KVA
Welding Capacity: (4+4mm mild steel) 4 wire same time
Maximum Force: 305-610 daN
Input Voltage: 380V/50Hz
Protection Fuse: 300A
Power Level: %0-99 power adjustable by digital microcontroller
Weld Time: 1-99 Cycle (20ms – 2s) adjustable by digital microcontroller
Arm Length: 1500mm
Cooling: Water cooling (30L/min)
Power Input Cable: 3m
Protection Class: IP21
Dimensions (W/L/H): 4500m x3500mm x 2150mm
Weight: 1250Kg
