Band Saw Blade Flash Butt Machine

Flash Butt Welding Technology for Bandsaw Blades with Scissors and Grinding

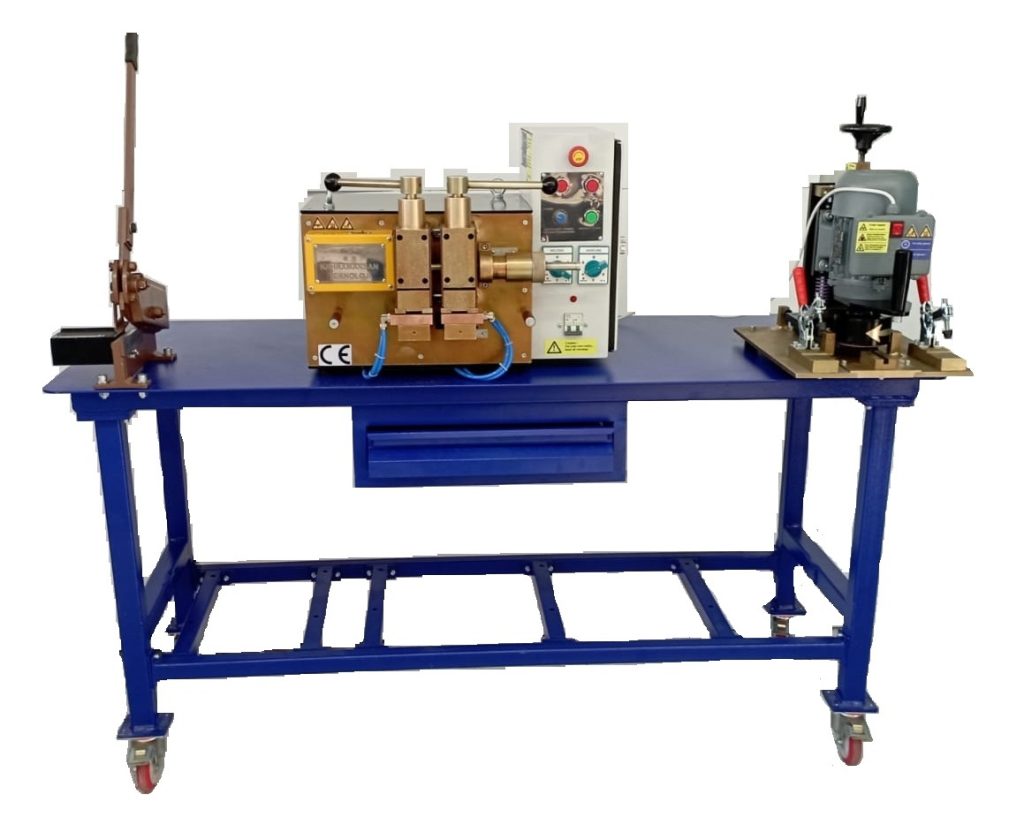

KMF10 Bandsaw Blade Flash Welding Machines are widely used across various industrial fields. They play a crusial role in metalworking, woodworking, construction, and manufacturing industries by enabling precise joining and annealing of bandsaw blades and reliable flash butt welding solution for metal and bimetal band saw blades. #kahramansanteknoloji

Technical Specifications

Model: KMF10

Operated: Spring pressure

Power: 10KVA (%50 DC)

Welding Capacity: Up to 60mm mild steel strip

Input Voltage: 220V (50Hz)

Protection Fuse: 220V / 40A

Welding Power Level: 5

Annealing Power Level: 5

Power Input Cable: 2,3m

Protection Class: IP21

Dimensions (W/L/H): 160cm x 180cm x 79cm

Weight: 294Kg

---

Bandsaw Blade & Butt Welding Machine

Cost-Effective Bandsaw Blade Welding Technology

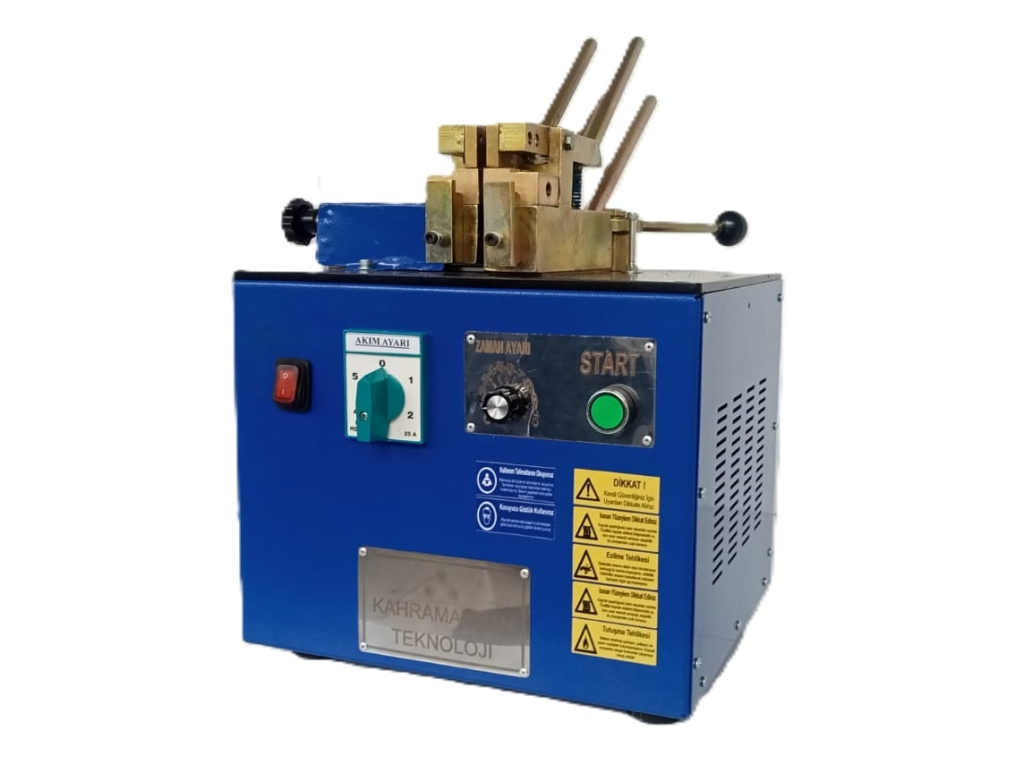

The KMB5 Bandsaw Blade & Butt Welding Machine is designed as a compact and affordable solution for small-scale wood and metal blade welding. With reliable flash butt welding performance, it offers workshops and manufacturers a cost-effective option without compromising quality.

Technical Specifications

Model: KMB5

CE certified

Operated: Hand

Power: 5kVA

Welding Capacity: Up to 5mm + 5mm steel wire

Welding Capacity: Up to 20mm mild steel strip

Primary winding: Copper wire

Secondary winding: Copper bar

Core: Silicon steel EI core

Mains Connection: 220V / 50Hz

Power Input Cable: 1.85m

Protection Class: IP21

Space Requirement (W/L/H): 300mm x 370mm x 275mm

Weight: 48Kg
