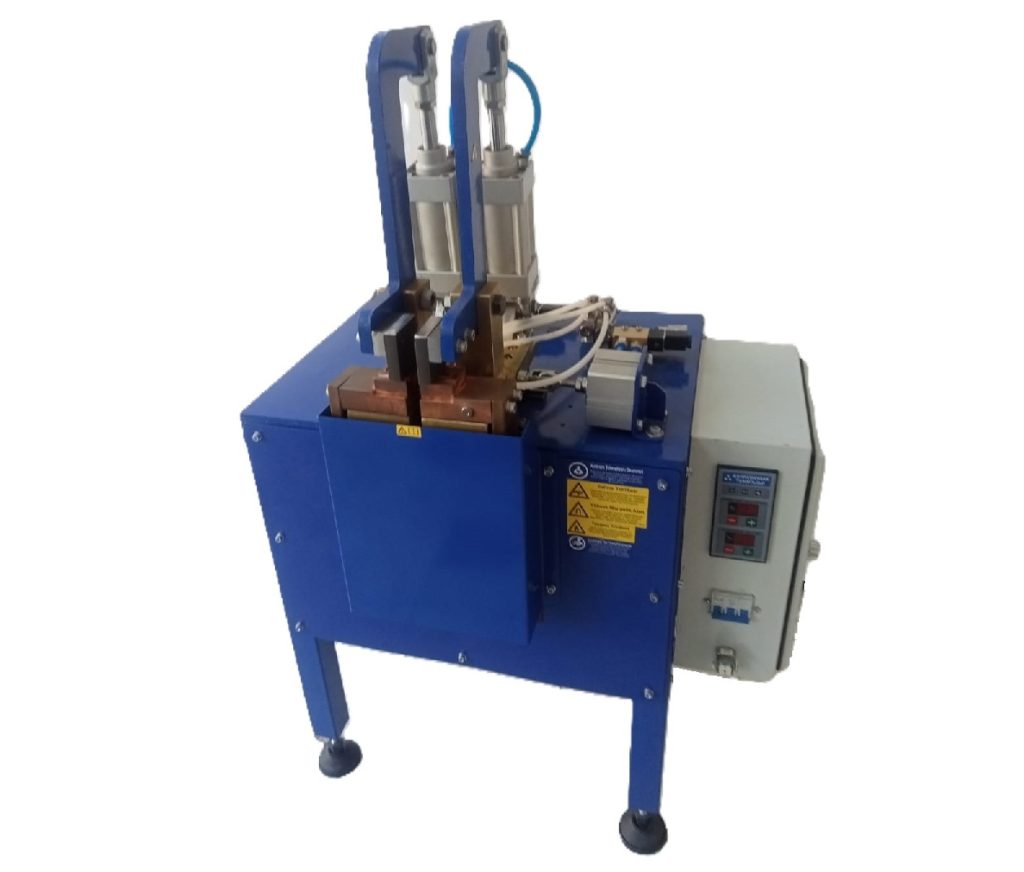

Butt Spot Welding Machine
Resistance Butt Welding Machine
The KHB30 butt spot welding machine enables the joining and annealing of welding wires. The product creates strong, durable, and smooth connections. Butt spot welding is widely used in metalworking, construction, metal decoration, chain manufacturing, and other fields. You can order from Africa, the American continent, Europe, Asia, and Türkiye. #kahramansanteknoloji
Technical Specifications
Model: KHB30
Operated: Pneumatic
Pressure: 2-6 bar
Power: 30KVA
Welding Capacity: 10+10mm mild steel wire
Input Voltage: 380V/50Hz
Protection Fuse: 63A
Power Level: %0-99 power adjustable by digital microcontroller
Weld Time: 1-99 Cycle (20ms – 2s) adjustable by digital microcontroller
Cooling: Water cooling (15L/min)
Power Input Cable: 3m
Protection Class: IP21
Dimensions (W/L/H): 1760m x 920mm x 1050mm
Weight: 220Kg

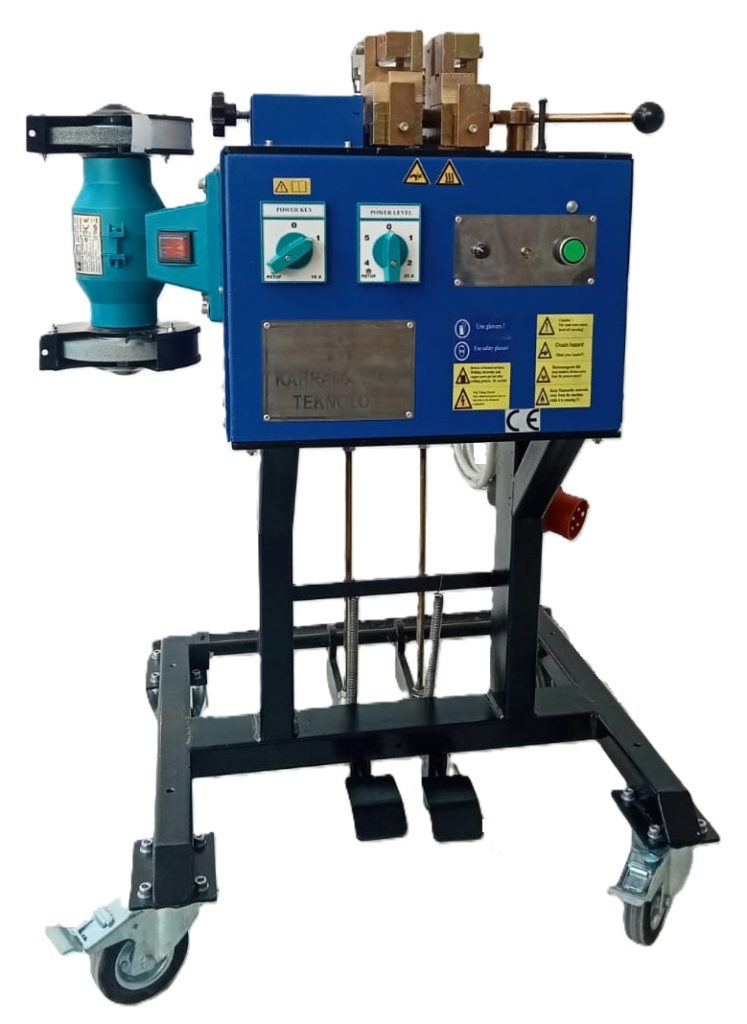

Wire Butt Wire Welding Machine
Wire Butt Spot Welding Machine with Grinding
The Wire Butt Welding Machine is a special foot-operated and manually controlled device designed for butt spot welding and annelling wires. KAB10 joints and annelling wires ensuring strong, durable, and smooth connections. This machine is widely used in metalworking, construction, chain manufacturing, and decorative applications, offering precision and reliability in every weld.
Technical Specifications
Model: KAB10
CE certified
Operated: Foot
Power: 10kVA
Welding Capacity: Up to 8mm + 8mm mild steel wire
Primary winding: Copper wire
Secondary winding: Copper bar
Core: Silicon steel EI core
Mains Connection: 380V / 50Hz
Power Input Cable: 3m
Protection Class: IP21
Space Requirement (W/L/H): 625mm x 600mm x 1035mm
Weight: 90Kg

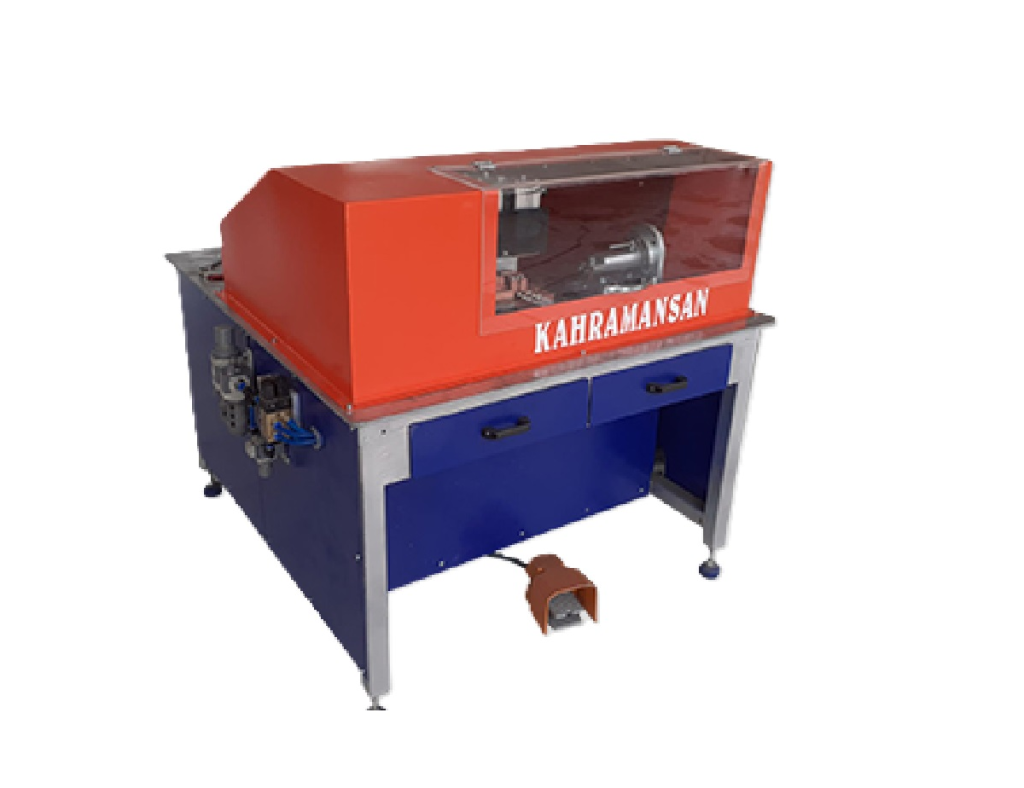

Stabilizer Link Welding Machine
High‑precision resistance welding technology designed for stabilizer bar links for automotive suspension systems.
The KHB120 R Stabilizer Link Welding Machine delivers 120 KVA power with angle adjustment, and water cooling—ideal for automotive stabilizer bar link welding with precision and durability. #kahramansanteknoloji
Technical Specifications
Model: KHB120 R
Operated: Pneumatic
Pressure: 2-6 bar
Power: 120KVA
Welding Capacity: Up to 15mm mild steel wire
Input Voltage: 380V/50Hz
Protection Fuse: 250A
Power Level: %1-99 power adjustable by digital microcontroller
Weld Time: 1-99 Cycle (20ms – 2s) adjustable by digital microcontroller
Cooling: Water cooling (18L/min)
Power Input Cable: 3m
Protection Class: IP21
Dimensions (W/L/H): 1070m x 660mm x 1050mm
Weight: 310Kg

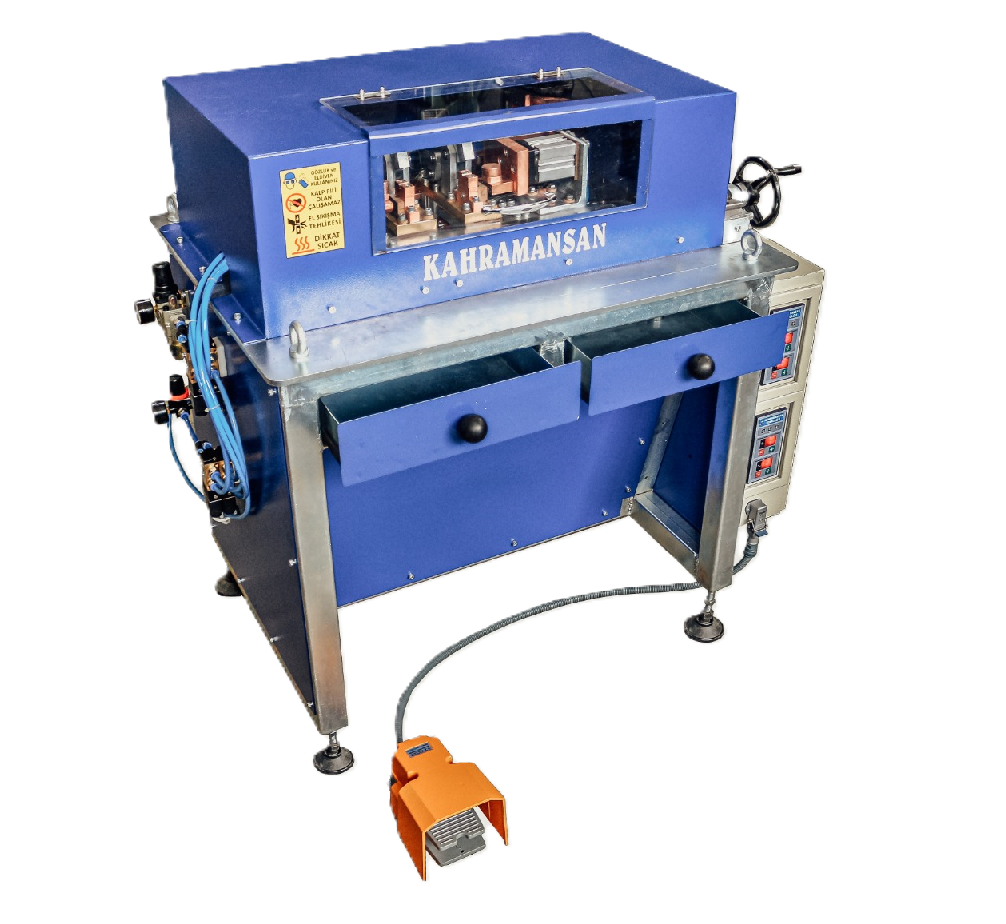

Resistance Spot Welding Machine for stabilizer Links
Automotive Suspension Welding Systems for Stabilizer Bar Links, Tie Rods, Anti‑roll Bar Components
The KHB45 R Z Rod Spot Welding Machine is a specialized resistance welding solution for automotive suspension components, designed to weld two rings simultaneously with 45 KVA power, pneumatic pressure, and water cooling.
Technical Specifications
Model: KHB45 R
Operated: Pneumatic
Pressure: 2-6 bar
Power: 45KVA
Welding Capacity: Up to 10mm mild steel wire
Input Voltage: 380V/50Hz
Protection Fuse: 63
Power Level: %1-99 power adjustable by digital microcontroller
Weld Time: 1-99 Cycle (20ms – 2s) adjustable by digital microcontroller
Cooling: Water cooling (12L/min)
Power Input Cable: 3m
Protection Class: IP21
Dimensions (W/L/H): 950m x 600mm x 850mm
Weight: 245Kg
